New Scale Technologies - Developer's kit for M3-F and M3-FS focus modules
| Model | Lens diameter | Lens Included | Model | Price | Order | |
|---|---|---|---|---|---|---|
|
DK-M3-FS-1.8-1.5-M12 | M12 | No | M3-FS | £920.00 | |
|
|
DK-M3-FS-1.8-1.5-M16 | M16 | No | M3-FS | £920.00 | |
|
DK-M3F-1.8-TRK-1.5-S | M12 | No | M3-F | £700.00 |
Summary
M3-FS and M3-F Developer’s Kits provide convenient engineering evaluation and demonstration of automated focus in your system.Description:
The developer’s kit includes an M3-FS or M3-F focus module that you can control from your PC using our New Scale Pathway™ Software. This provides a simple and powerful platform for easy evaluation of the module as well as for your system development. You can interface directly to the module via its serial interface for prototyping.

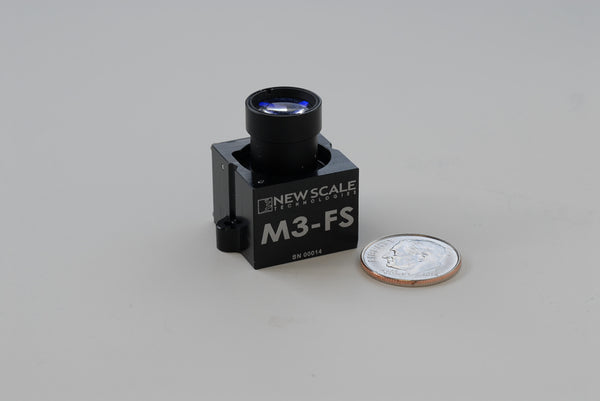

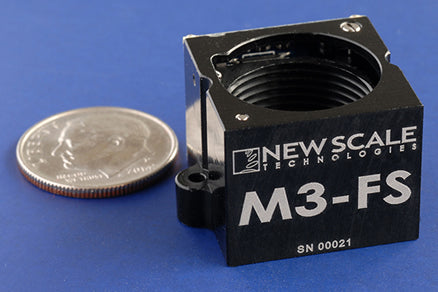

DK-M3-FS-1.8-1.5-M12/16 Includes the high-performance M3-FS-1.8-1.5-M16 focus module with ball bearing guide. USB adapter, M16 to M12 lens adapter, cables, instructions and New Scale Pathway™ software. (Lens not included)
DK-M3F-1.8-TRK-1.5-S Includes one original M3-F Focus Module with pin-bushing guide, USB adapter (SPI), cables, instructions and New Scale Pathway software. (Lens not included.)
Specifications:
|
Model |
M3-FS |
Original M3-F |
|
Lens type(lens not included) |
M16x1mm Accepts M12x0.5mm with standard adapter. Other sizes by special order |
M12x0.5mm Accepts smaller lenses (to M8x0.35) with adapter by special order |
|
Lens weight (note 1) |
< 5 grams (all orientations) |
< 5 grams |
|
Travel range |
up to 1.5 mm |
up to 1.5 mm |
|
Housing dimensions |
20 x 23 x 16 mm including controller |
20 x 22 x 16 mm including controller |
|
Max image sensor area (image sensor not included) |
17 x 17 mm (see drawing) |
17 x 17 mm (see drawing) |
|
Max. speed |
5 mm/s |
5 mm/s |
|
Resolution |
0.5 μm |
0.5 μm |
|
Repeatability |
Uni-directional: +/- 2.5 μm Bi-directional: +/- 5 μm |
Uni-directional: +/- 8 μm Bi-directional: +/- 20 μm |
|
Linear accuracy |
+/- 12 μm |
+/- 30 μm |
|
Static tilt |
< +/- 0.7 degree |
< +/- 1 degree |
|
Dynamic tilt |
< +/- 0.05 degree |
< +/- 0.15 degree |
|
Static concentricity |
< +/- 0.25 mm |
< +/- 0.25 mm |
|
Dynamic concentricity |
< +/- 0.002 mm typical |
< +/- 0.02 mm |
|
Digital interface |
I2C or SPI |
I2C or SPI |
|
Input voltage |
3.1 to 3.6 VDC |
3.1 to 3.6 VDC |
|
Input power (note 2) |
< 1 Watt (5mm/s with 5g mass) |
< 1 Watt (5mm/s with 5g mass) |
|
< 0.13 Watts quiescent |
< 0.13 Watts quiescent |
|
|
Temperature and humidity (note 3) |
5°C to 70°C (lower possible) |
5°C to 70°C (lower possible) |
|
<70% relative humidity non-condensing |
<70% relative humidity non-condensing |
|
|
Lifetime(note 4) |
>10 million random moves while not exceeding 1.2 km total travel (See note 4) |
>2 million cycles (fixed orientation) or 500,000 cycles (random orientation) |
|
Weight of module(without lens) |
8 grams |
5.8 grams |
|
Compliance |
CE, RoHS |
CE, RoHS |
|
Control interface |
Via USB adapter from PC or directly via I2C or SPI |
Via USB adapter from PC or directly via I2C or SPI |
|
Controller |
embedded |
embedded |
