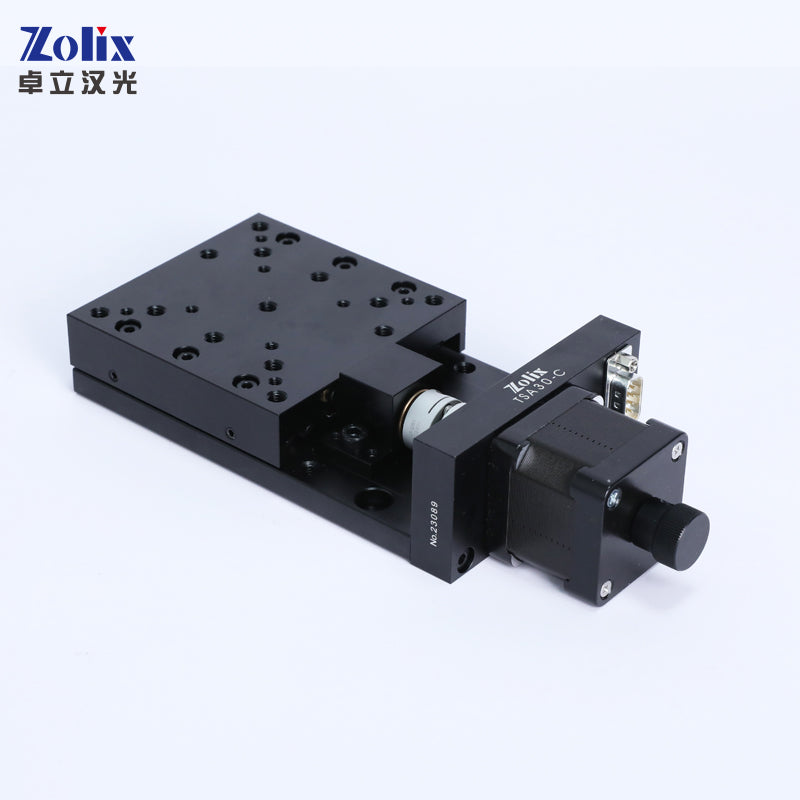

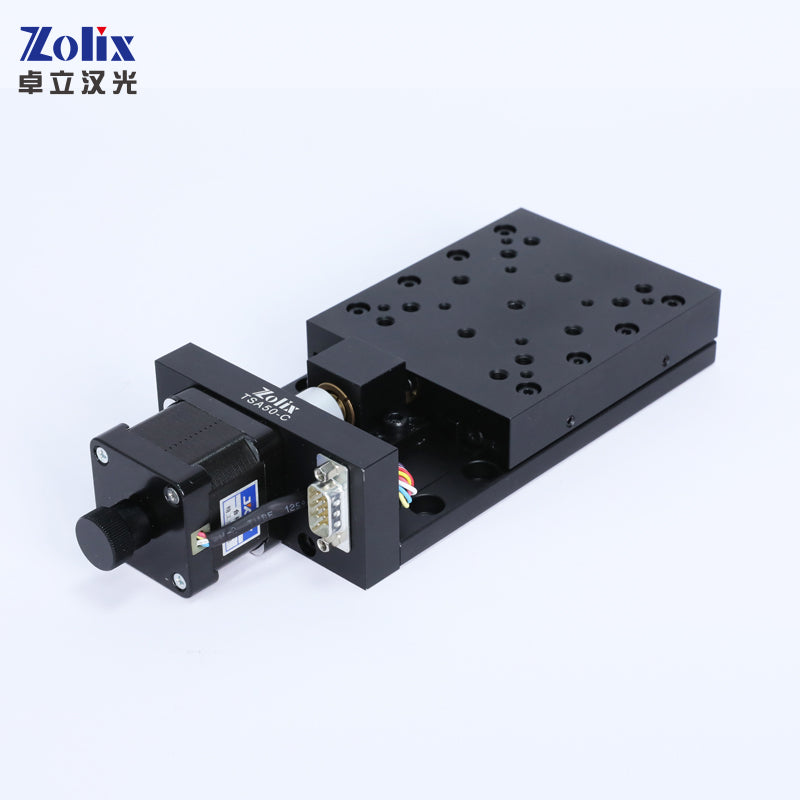

TSAxx-C Series Slim Motorised Linear Stages
Enhance your motion control capabilities with the Zolix TSAxx-C Series SLIN Motorised Linear Stage, a compact, high-precision positioning solution designed for modern automation, research, and optical systems. Combining sleek engineering with dependable performance, this motorised stage is ideal for applications where space efficiency and accuracy are equally critical.
Compact Design, Powerful Performance
The TSAxx-C Series SLIN (Slim Linear) stage is engineered with a low-profile, space-saving design, making it perfect for integration into tight or complex system layouts. Despite its compact footprint, it delivers impressive strength and stability, ensuring reliable operation in both standalone and multi-axis configurations.
High-Precision Linear Motion
Built for accuracy, the TSAxx-C Series offers smooth, controlled linear travel with excellent positioning precision and repeatability. Its refined drive mechanism enables consistent motion with minimal backlash, making it ideal for fine adjustment tasks in demanding technical environments.
Smooth and Quiet Operation
Designed with performance and usability in mind, this motorised stage provides low-noise, vibration-reduced movement, helping maintain stability in sensitive setups such as optical experiments, imaging systems, and precision measurement equipment.
Durable and Reliable Construction
Manufactured from high-quality materials, the TSAxx-C Series ensures long-lasting durability and dependable performance. Its robust construction supports consistent operation over time, even in high-frequency or continuous-use scenarios.
Features:
- Slim, low-profile design for space-constrained applications
- High positioning accuracy and repeatability
- Smooth, low-vibration motion control
- Reliable motor-driven performance
- Easy integration with motion control systems and automation platforms
Applications:
- Optical alignment and photonics systems
- Laboratory automation and research setups
- Imaging and inspection equipment
- Semiconductor and microfabrication processes
- Compact multi-axis positioning systems
Why Choose the Zolix TSAxx-C Series SLIN?
When precision, compactness, and reliability matter, the TSAxx-C Series delivers. Its streamlined design and accurate motion control make it a versatile choice for engineers, researchers, and system integrators looking to optimise performance without sacrificing space.
Specifications:
| Model | TSA30-C | TSA50-C | |
|---|---|---|---|
| Mechanical Specifications | Travel Range (mm) | 30 | 50 |
| Stage Surface Size (mm) | 90 x 90 | 90 x 110 | |
| Transmission Mechanism | Grinding Screws φ8 x 1 | ||
| Guide Mechanism | Crossed-Roller Bearing Guides | ||
| Main Body Material, Surface Treatment | Black Adonised Aluminium Alloy | ||
| Weight (Kg) | 1.3 | 1.4 | |
| Accuracy Specifications | Resolutions (Step/Half-Step)(μm) | 5/2.5 | |
| 8-Fine-Subdivision Resolution (μm) | 0.625 | ||
| Highest Speed (mm.s) | 10 | ||
| Repositioning Accuracy (μm) | ≤±5 | ||
| Backlash (μm) | ≤7 | ||
| Electrical Specifications | Motor and its Stepping Angle (°) | Two Phase 42 Stepping Motor, 1.8 | |
| Working Current (A) | 1.7 | ||
| Holding Torque of Motor (N m) | 0.42 | ||
| Position-Limit Sensors (Build-In) | 2 x KX - EE - SX673 | ||
| Origin-Point Sensors (Built-In) | 1 X Pi - ITR8104 | ||
| Maximum Load Capacity | Horizontal Direction (Kg) | 10 | |
| Vertical Direction (Kg) | 5 | ||
| Inverted Direction (Kg) | 3 | ||
Want to purchase this product?
Get in touch using one of the methods below
| Model | Travel Range (mm) | Stage Surface Size (mm) | Weight (Kg) | Price | |
|---|---|---|---|---|---|
|
TSA30-C | 30 | 90 x 90 | 1.3 | PoR |
|
TSA50-C | 50 | 90 x 110 | 1.4 | PoR |
