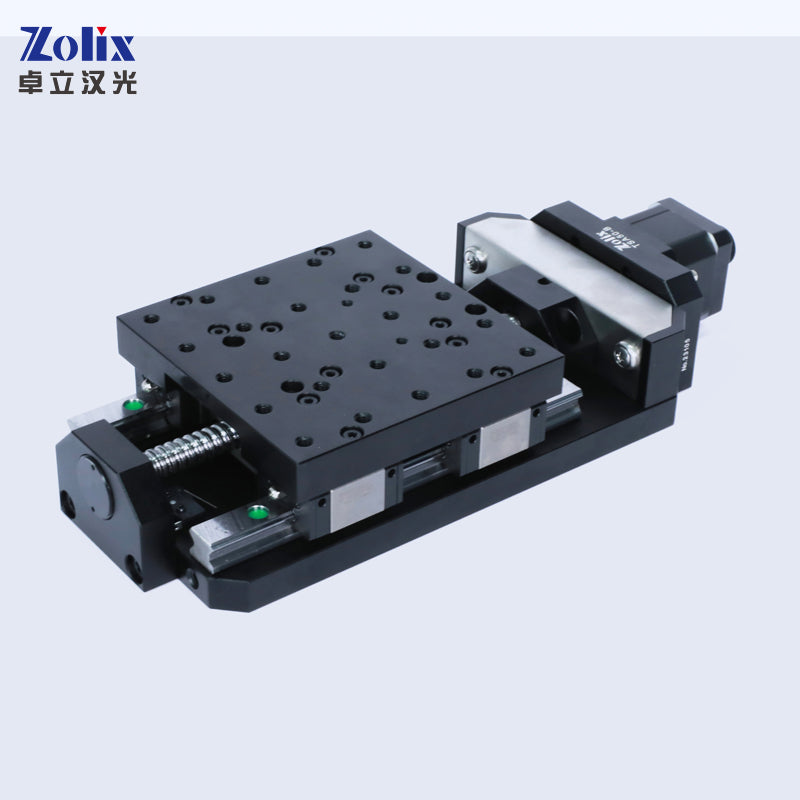

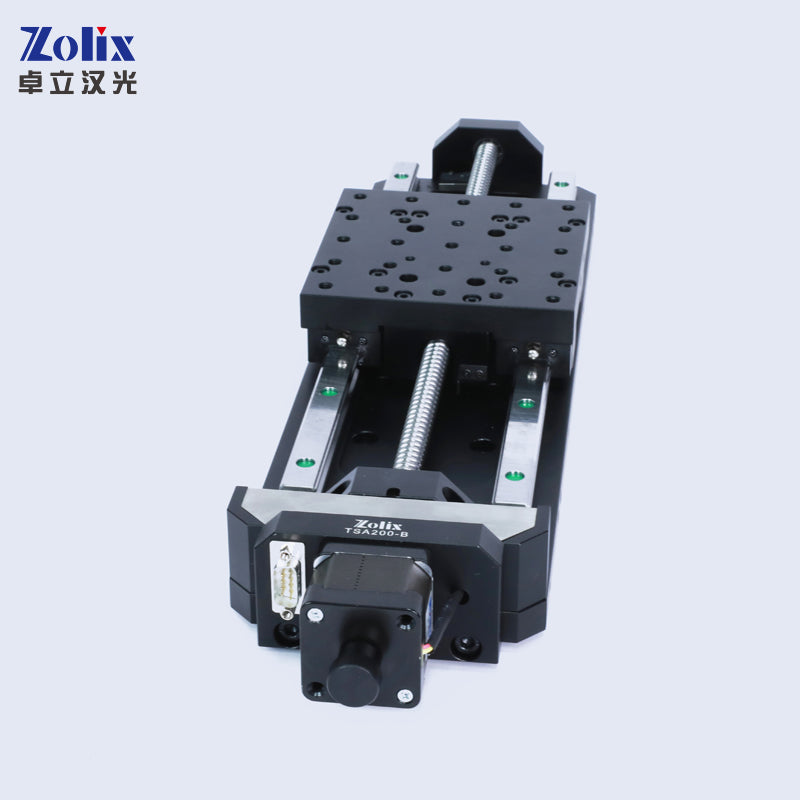

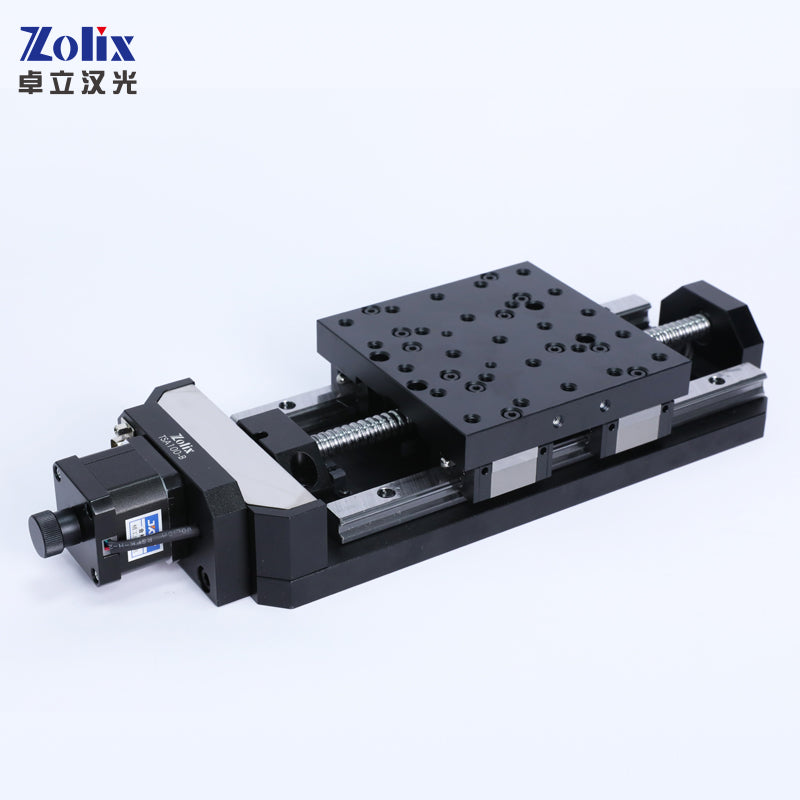

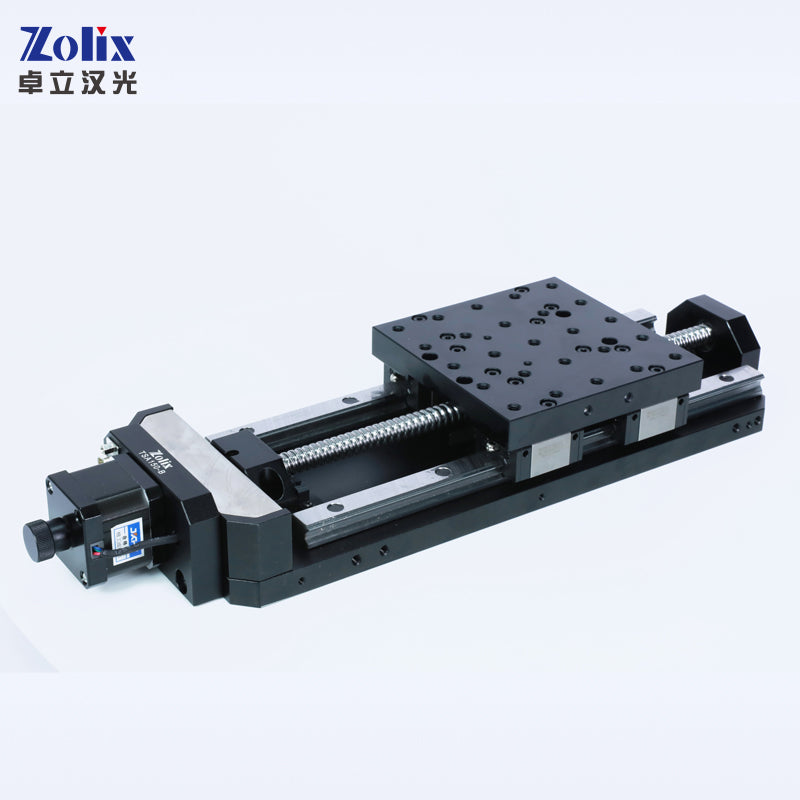

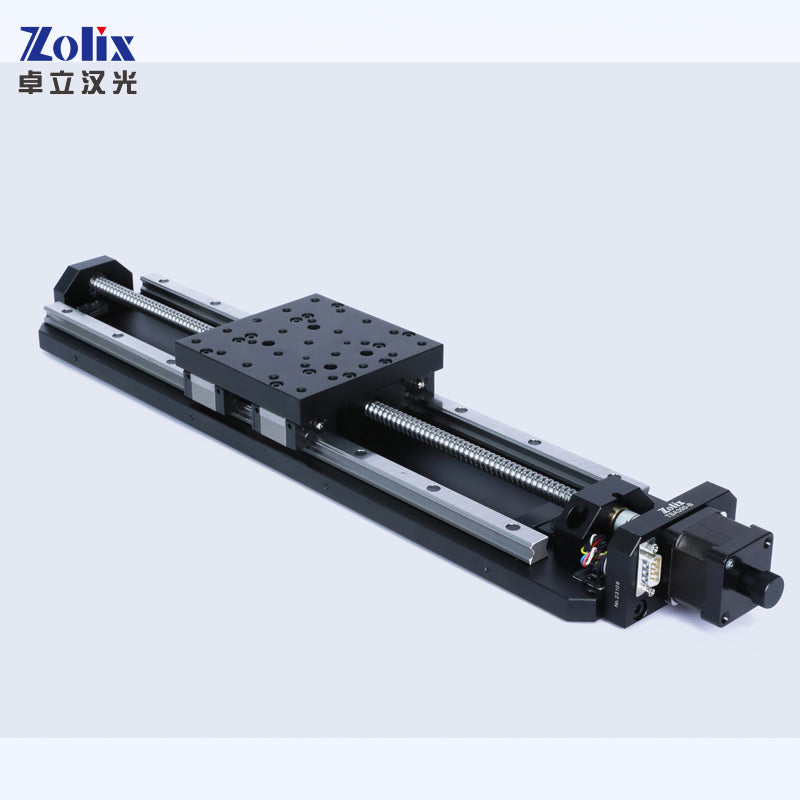

TSAxx-B Series Square Guide Motorised Linear Stage
Zolix TSAxx-B Series Square Guide Motorised Linear Stage—a robust, high-performance solution engineered for demanding industrial, scientific, and laboratory applications. Designed with accuracy, stability, and reliability in mind, this advanced motorised stage delivers smooth, repeatable motion control for tasks where precision is non-negotiable.
Precision Engineering for Demanding Applications
The Zolix TSAxx-B Series features a square guide rail structure, ensuring superior load capacity and enhanced rigidity compared to conventional linear stages. This design minimises deflection and vibration, making it ideal for high-precision environments such as optical alignment, semiconductor inspection, and automated measurement systems.
Smooth, Accurate Motion Control
Powered by a high-quality motor drive system, the TSAxx-B Series provides consistent, micron-level positioning accuracy. The precision-ground leadscrew mechanism ensures smooth linear translation, while maintaining exceptional repeatability—perfect for applications requiring fine adjustments and stable positioning over extended periods.
Built for Stability and Durability
Constructed from premium-grade materials, this motorised linear stage offers long-term durability and reliable performance even under continuous operation. The square guide configuration enhances structural integrity, enabling the stage to handle higher loads without compromising precision.
Key Features:
- High load capacity thanks to square guide rail design
- Excellent positioning accuracy and repeatability
- Smooth, low-noise operation for sensitive environments
- Durable construction for long service life
- Flexible integration with motion controllers and automation systems
Versatile Applications
The Zolix TSAxx-B Series is widely used across a range of industries, including:
- Optical and photonics alignment
- Precision metrology and inspection
- Semiconductor and electronics manufacturing
- Research laboratories and R&D environments
- Automated positioning and scanning systems
Why Choose the Zolix TSAxx-B Series?
If you require a motorised linear stage that combines precision, strength, and reliability, the TSAxx-B Series stands out as a trusted solution. Its advanced engineering ensures consistent performance, helping you achieve accurate results while improving operational efficiency.
Optimise your motion control system today with the Zolix TSAxx-B Series Square Guide Motorised Linear Stage—where precision meets performance.
Specifications:
| Model | TSA50-B | TSA100-B | TSA150-B | TSA200-B | TSA300-B | |
|---|---|---|---|---|---|---|
| Mechanical Specifications | Travel Range (mm) | 50 | 100 | 150 | 200 | 300 |
| Stage Surface Size (mm) | 120 x 120 | |||||
| Transmission Mechanism | Precision Ball Screw, Φ12 x 4 | |||||
| Guide Mechanism | Linear-Slider Guides | |||||
| Main Body Material, Surface Treatment | Black Anodised Aluminium Alloy | |||||
| Weight | 3.4 | 3.7 | 4.1 | 4.6 | 5.3 | |
| Accuracy Specifications | Resolution (step/half-step)(μm) | 10/5 | 20/10 | |||
| 8-Fine-Subdivision Resolution (μm) | 1.25 | 2.5 | ||||
| Highest Speed (mm/s) | 40 | |||||
| Repositiong Accuracy (μm) | ≤±5 | |||||
| Backlash (μm) | ≤7 | |||||
| Electrical Specifications | Motor and its Stepping Angle (°) | Two Phase 42 Stepping Motor, 0.9 | Two Phase 42 Stepping Motor, 1.8 | |||
| Working Current (A) | 1.7 | |||||
| Holding Torque of Motor (N:m) | 0.52 | |||||
| Position-Limit Sensors (Built-In) | 2 x KX - EE - SX672 | |||||
| Origin-Point Sensors (Built-In) | 1 x Pi-ITR8104 | |||||
| Maximum Load Capacity | Horizontal Direction (Kg) | 30 | ||||
| Vertical Direction (Kg) | 3 | |||||
| Inverted Direction (Kg) | 5 | |||||
Want to purchase this product?
Get in touch using one of the methods below
| Model | Travel Range (mm) | Weight (Kg) | Price | |
|---|---|---|---|---|
|
TSA50-B | 50 | 3.4 | PoR |
|
TSA100-B | 100 | 3.7 | PoR |
|
TSA150=B | 150 | 4.1 | PoR |
|
TSA200-B | 200 | 4.6 | PoR |
|
TSA300-B | 300 | 5.3 | PoR |
