LA Series Precise Compact Motorised Linear Stages
The LA Series of Precise Compact Motorised Linear Stages are designed for industrial applications requiring high repeatability.
Want to purchase this product?
Get in touch using one of the methods below
| Model | Travel Range (mm) | Maximum Speed (mm/s) | Centred Load Capacity (Kg) | Price | |
|---|---|---|---|---|---|
|
LA50-60 | 50 | 20 | 4 | PoR |
|
LA100-60 | 100 | 20 | 4 | PoR |
|
LA150-60 | 150 | 20 | 4 | PoR |
The LA Series of Precise Compact Motorised Linear Stages are designed for industrial applications requiring high repeatability.
Description:

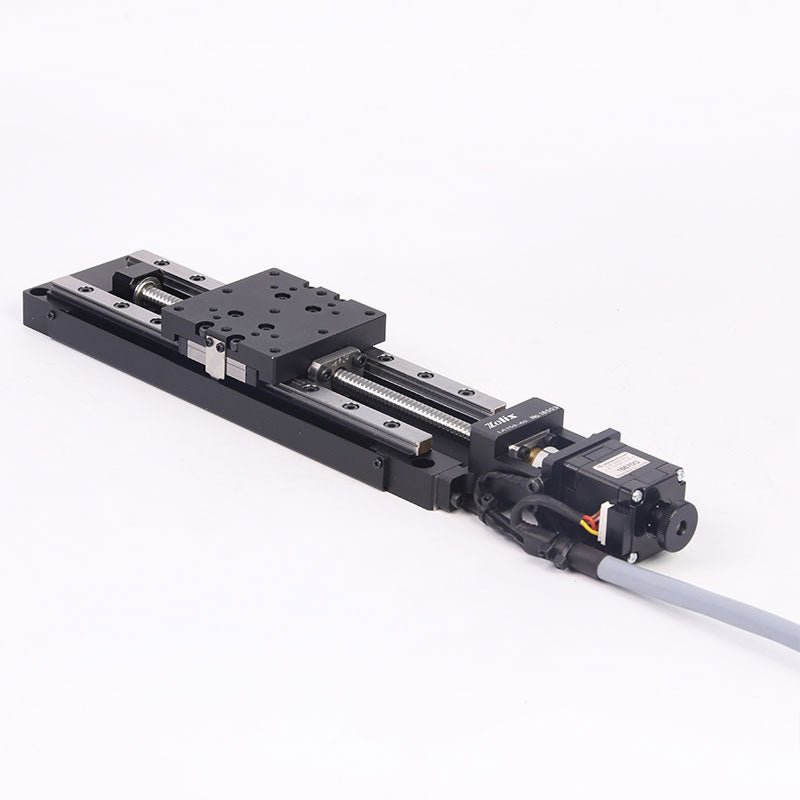

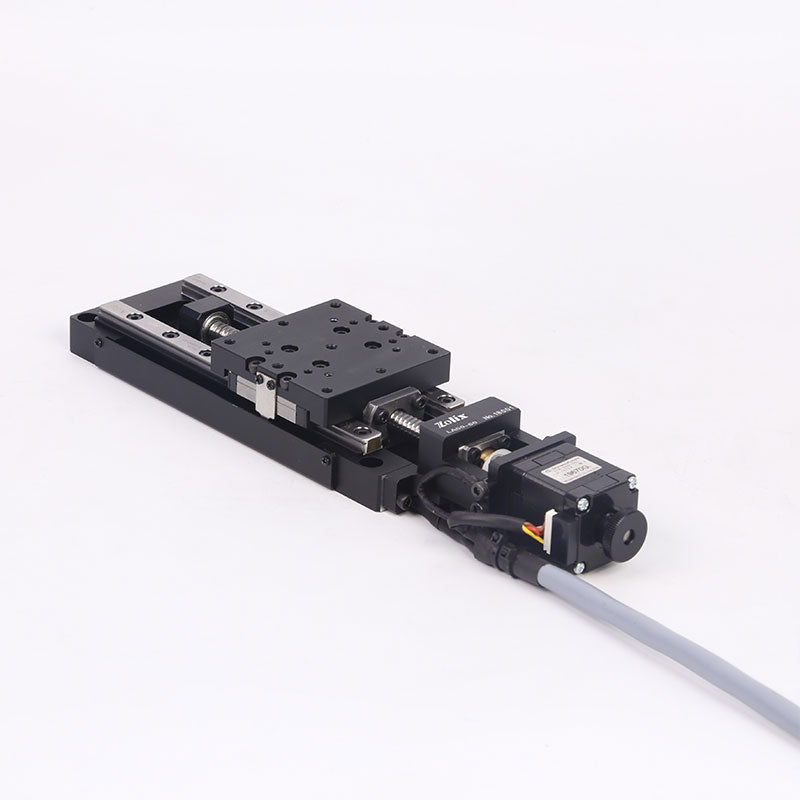

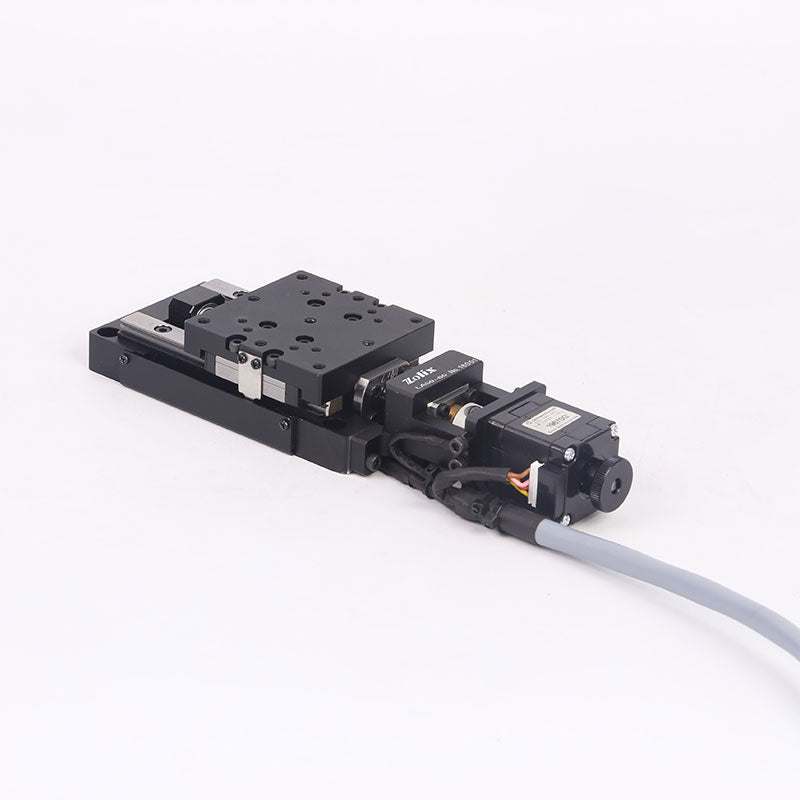

LA Series Precise Compact Motorised Linear Stages
Description:
The LA series is designed for industrial applications with high repeatability. The main body material is rigidity aluminum alloy treated with black anodic oxidation to meet heavy load, multi-dimension combinations requirements.The mechanical mechanism adopts ball screw drive and equipped with standard two-phase stepper motor, which can provide high resolution and positioning accuracy.
Main characteristics:
•Adopting a precision ball screw and standard two-phase stepper motor to provide high resolution and positioning accuracy.
•Smooth linear-slider guides enables the stage to run at high speed.
•The mounting surface of the guide adopts precision machining technology, which makes the product have high motion accuracy.
•Built-in three sensors(positive and negative limit and zero limit), the use of high flexible cable and cable module, more convenient maintenance
•With three built-in sensors(positive, negative, and zero) and a highly flexible cable and cable module, this design makes maintenance easier
Specifications:
| Model | LA50-60 | LA100-60 | LA50-60 | |
|---|---|---|---|---|
| Mechanical Specifications | Travel Range (mm) | 50 | 100 | 150 |
| Stage Surface Size (mm) | 60 x 60 | |||
| Transmission Mechanism | Ball Screw, Φ8×2 | |||
| Guide Mechanism | Linear Slider Guides | |||
| Main Body Material, Surface Treatment | Black Adonized Aluminium Alloy | |||
| Weight (Kg) | 0.73 | 0.85 | 1 | |
| Accuracy Specifications | Resolution (Step/Half-Step)(μm) | 10/5 | ||
| 20-Fine-Subdivision Resolution (μm) | 0.5 | |||
| Highest Speed (mm/s) | 20 | |||
| Repositioning Accuracy (μm) | ≤±2 | |||
| Static Clearance (μm) | ≤1 | |||
| Backlash (μm) | ≤3 | |||
| Static Parallelism (mm) | ≤0.08 | |||
| Dynamic Straightness (μm) | ≤20 | |||
| Dynamic Parallelism (μm) | ≤30 | |||
| Speciality Specifications | Minimum Incremental Motion (μm) | ≤2 | ||
| Repositioning Accuracy While Micro-Step Motion (μm) | ≤±1 | |||
| Backlash While Micro-Step Motion (μm) | ≤0.5 | |||
| Electrical Specifications | Motor and its Stepping Angle (°) | Two-Phase 28 Stepping Motor, 1.8 | ||
| Brand and Model Number of Motor | Shinano, STP-28D1003-08 | |||
| Working Current (A) | 1.3 | |||
| Torque of Motor (N-m) | 0.07785 | |||
| Brand and Model Number of Stepping Driver (Optional) | Moons SR2 | |||
| Type of Plug for Stage | DB9 (Pin) | |||
| Type of Cable for Stage | High Flexibility Cable (Helukabel, Germany) | |||
| Length of Connection Cable (m) | 0.2 | |||
| Position-Limit Sensors (Built-In) | 2 x GP1S09 x HCP (Japan SHARP) | |||
| Origin-Point Sensors (Built-In) | 1 x GP1S09 x HCP (Japan SHARP) | |||
| Voltage of Power Supply for Sensors (V) | DC5~24V±10% | |||
| Control Output | NPN open collector output DC5～24V 8mA or less Residual voltage 0.3V or less(when load current is 2mA) | |||
| Status of Output Ports | Output ON When Sensor is Blocked | |||
| Maximum Load Capacity | Horizontal Direction (Kg) | 4 | ||
| Vertical Direction (Kg) | 2 | |||
| Inverted Direction (Kg) | 2 | |||
