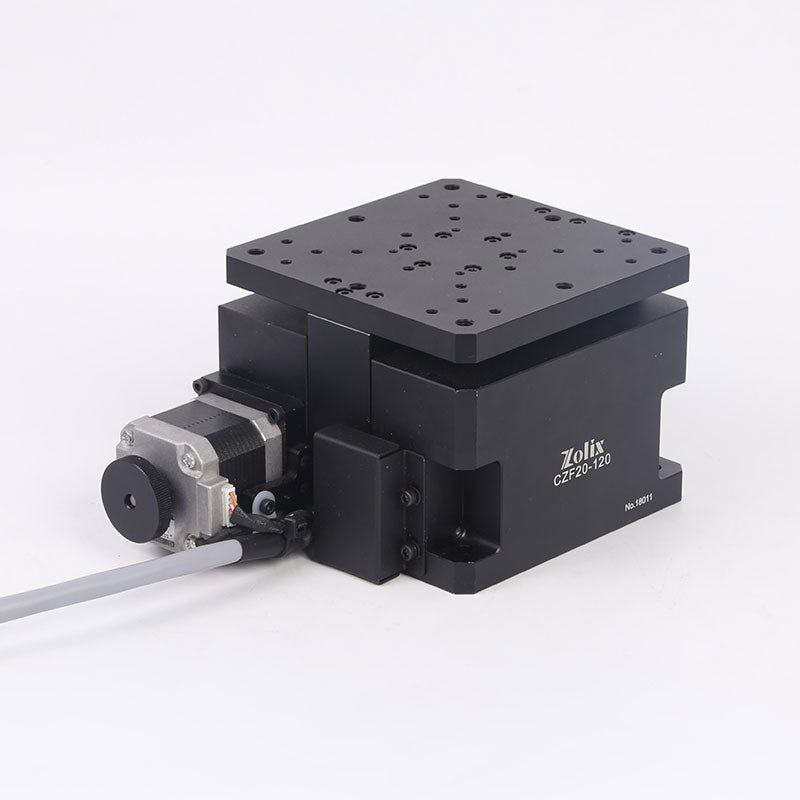

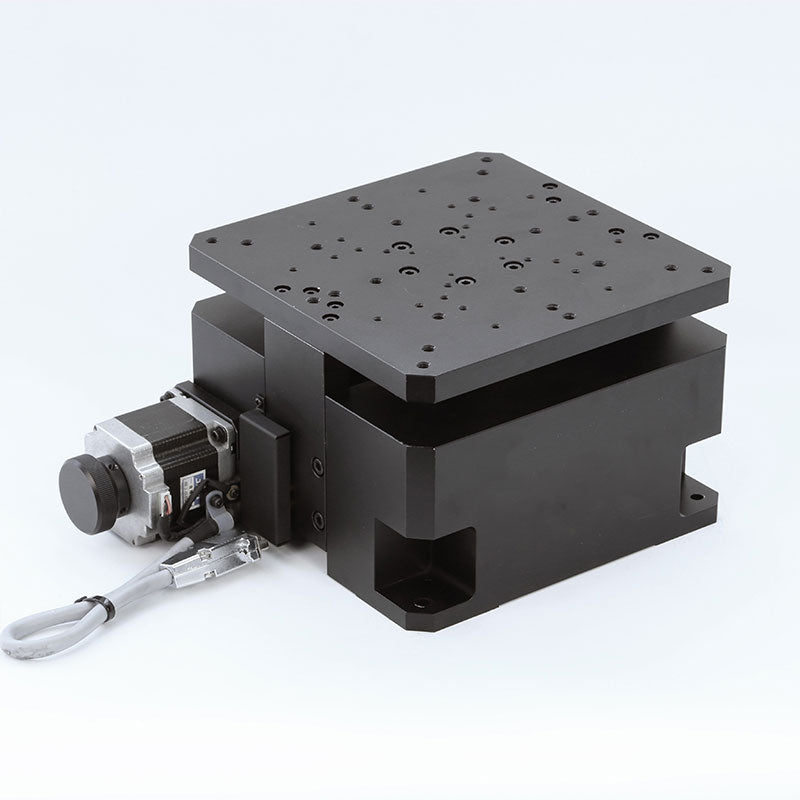

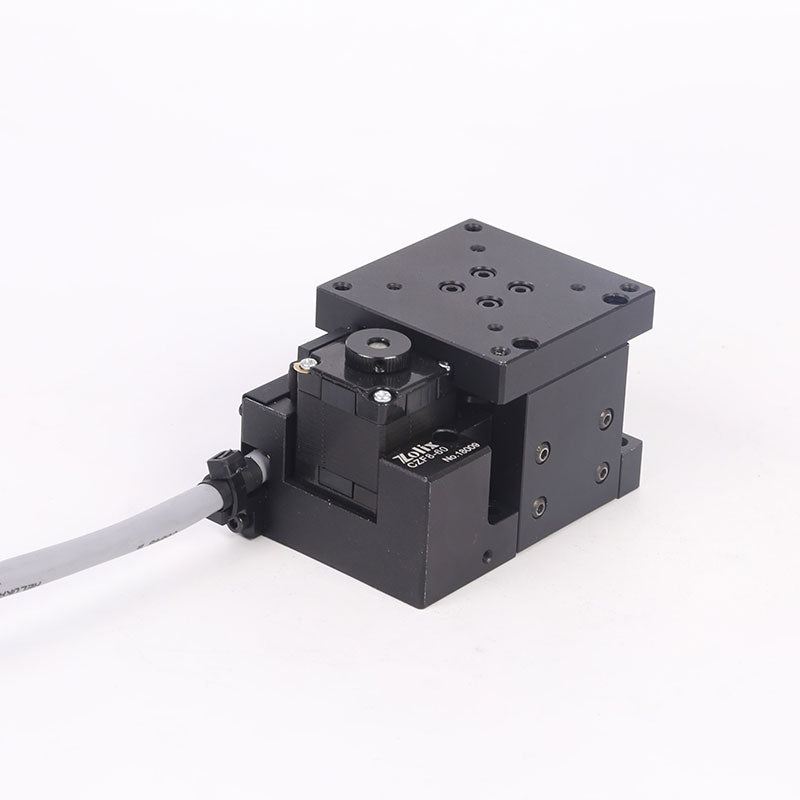

CZF Series High Precision Motorised Vertical-Motion Stages
Zolix's CZF Series High Precision Motorised Vertical-Motion Stages are designed and manufactured to meet the requirements of highly demanding applications.
These stages offer higher motion precision with their use of linear-slider or cross-roller guides. These feature high strength, high loading capacity and excellent durability.
This series is ideal for integration into automation equipment, or instruments with strict size and weight restrictions.
The CZF Series operate with a short-travel reange and higher repetition rate, making them suitable for on-site production lines.
Features:
• Ball screws with high quality stepping motors
to provide higher resolution and positioning
accuracy.
• High strength, heavy load capacity and high
durability are offered by linear-slider or crossedroller
bearing guides.
• Fine-grinding techniques are used on the
treatment of installation surface of guides to
ensure high motion accuracy.
• Three sensors(two for position-limit and one
for origin point) works with high flexible cable.
Modular cable units make maintenance easier
Specifications:
| MODEL | CZF8-60 | CZF20-120 | CZF40-200 | |
|---|---|---|---|---|
| Mechanical Specifications | Travel Range (mm) | 8 | 20 | 40 |
| Stage Surface Size (mm) | 60 x 60 | 120 x 120 | 200 x 200 | |
| Ball Screws | φ6, 1mm Lead | φ12, 5mm Lead | φ16, 10mm Lead | |
| Transmission Mechanism | Timing Belt | Worm Gear and Worm | ||
| Transmission Ratio | 1:1 | 80:1 | 120:1 | |
| Travel Range with One Rotation of Motor (mm) | 1 | 0.0625 | ≈0.083 | |
| Material of Worm Gear | / | Wear-Resistant Tin Bronze | ||
| Material and Process Technology of Worm | / | Steel, High Frequency Quenchinged | ||
| Guide | Crossed-Roller Bearing Guiides | Linear-Slider Guides | ||
| Main Body Material, Surface Treatment | Black Anodised Aluminium Alloy | |||
| Shaft Coupling | / | 19-5-5 | 30-6.35-6.35 | |
| Weight (Kg) | 1 | 4.2 | 12.5 | |
| Accuracy Specifications | Resolution (Step/Half-Step)(μm) | 5/2.5 | ≈0.31/0.155 | ≈0.42/0.21 |
| 8-Fine-Subdivision Resolution (μm) | 0.625 | ≈0.039 | ≈0.052 | |
| Highest Speed (mm/s) | 5 | 0.625 | 0.833 | |
| Repositioning Accuracy (μm) | ≤±3 | ≤±2 | ||
| Zero-Load Backlash (μm) | / | ≤15 | ≤15 | |
| Static Parallelism (mm) | ≤0.1 | ≤0.1 | ≤0.12 | |
| Electrical Specifications | Motor and its Stepping Angle (°) | Two Phase 28 Stepping Motor, 1.8 | Two Phase 42 Stepping Motor, 1.8 | Two Phase 57 Stepping Motor, 1.8 |
| Brand and Model Number of Motor | Shinano, STP-28D1003-1504 | Shinano, SST43D2126-10 | Shinano,SST59D3206 | |
| Working Current (A) | 1.5 | 1.7 | 2.8 | |
| Motor Torque (N-m) | 0.0785 | 0.456 | 1.44 | |
| Brand and Model of Stepping Driver | Moons, SR2 | Moons, SR4 | ||
| Type of Plug for Stage | DB9 (Pin) | |||
| Type of Cable for Stage | High Flexibility Cable (Helukabel, Germany) | |||
| Length of Connection Cable (m) | 0.2 | |||
| Position-Limit Sensors (Built-in) | 2 x GP1S09 x HCPI (Japan, Sharp) | |||
| Origin-Point Sensors (Built-in) | 1 x GPS09 x HCPI (Japan, Sharp) | |||
| Voltage of Power Supply for Sensors (V) | DC5 ~ 24V±10% | |||
| Current Consumption (mA) | <60 (Total) | |||
| Sensor Control Output | NPN Open Collector Output DC5 ~ 24V 8mA or Less Residual Voltage 0.3V or Less (When Load Current is 2,A) | |||
| Status of Output Ports | Output ON When Sensor is Blocked | |||
| Maximum Load Capacity | Horizontal Direction (Kg) | 4 | 20 | 30 |
