CW Gas Lasers
Lumentum Power Supply Options for Helium Neon Lasers
All Lumentum HeNe power supplies provide a highly regulated constant current output, allowing for excellent optical stability and performance. Available as OEM modules or CDRH Laboratory versions. Suitable for use with 098, 1000 and 1100 series HeNe lasers
Regular price
£300.00
| Model | Input Voltage | Output Voltage | Suitable for | Price | Order | |
|---|---|---|---|---|---|---|
|

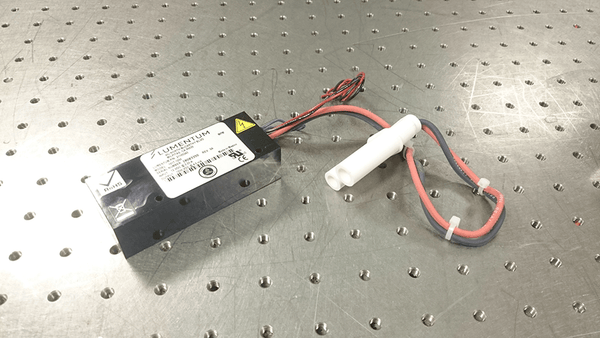

101T-1250 | 12V DC | 1250 V | 1107/1108 laser heads | £320.00 | |
|
|
101T-1700 | 12V DC | 1700 V | 1101/1103 laser heads | £475.00 | |
|
|
101T-1800 | 12V DC | 1800 V | 1122 laser heads | £320.00 | |
|
|
101T-2300 | 12V DC | 2300 V | 1125/1137 laser heads | £320.00 | |
|
|
101T-2300 | 24V DC | 2300 V | 1125/1137 laser heads | £320.00 | |
|

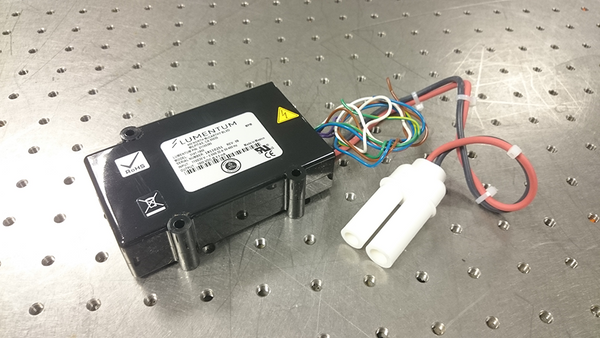

314T-1250-4-2 | 115/230V AC | 1250 V | 1107/1108 laser heads - 6" cable | £400.00 | |
|
|
314T-1700 | 115/230V AC | 1700 V | 1101/1103 laser heads | £695.00 | |
|
|
314T-1800 | 115/230V AC | 1800 V | 1122 laser heads | £420.00 | |
|
|
314T-2300 | 115/230V AC | 2300 V | 1125/1137 laser heads | £420.00 | |
|
|
314T-2700 | 115/230V AC | 2700 V | Green HeNe laser heads | £300.00 | |
|

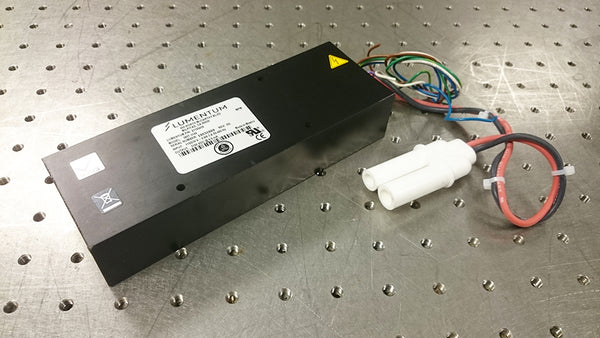

380T-3100 | 115/230V AC | 3100 V | 1135 laser heads | £750.00 | |
|
|
380T-3500 | 115/230V AC | 3500 V | - | £400.00 | |
|
|
380T-3800 | 115/230V AC | 3800 V | 1144/1145 laser heads | £550.00 | |
|

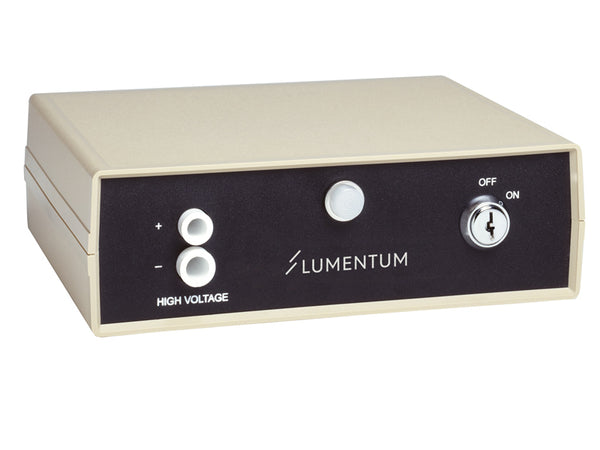

1201-1 | 115V AC | 1700 V | 1101/1103 laser heads | £790.00 | |
|
|
1201-2 | 230V AC | 1700 V | 1101/1103 laser heads | £790.00 | |
|
|
1202-1 | 115V AC | 2300 V | 1125/1137 laser heads | £610.00 | |
|
|
1202-2 | 230V AC | 2300 V | 1125/1137 laser heads | £610.00 | |
|
|
1205-1 | 115V AC | 1250 V | 1107/1108 laser heads | £610.00 | |
|
|
1205-2 | 230V AC | 1250 V | 1107/1108 laser heads | £610.00 | |
|
|
1206-1 | 115V AC | 1800 V | 1122 laser heads | £610.00 | |
|
|
1206-2 | 230V AC | 1800 V | 1122 laser heads | £610.00 | |
|
|
1216-1 | 115V AC | 3100 V | 1135 laser heads | £1,050.00 | |
|
|
1216-2 | 230V AC | 3100 V | 1135 laser heads | £1,050.00 | |
|
|
1218-1 | 115V AC | 3800 V | 1144/1145 laser heads | £750.00 | |
|
|
1218-2 | 230V AC | 3800 V | 1144/1145 laser heads | £750.00 |
Summary Box:
All Lumentum HeNe power supplies provide a highly regulated constant current output, allowing for excellent optical stability and performance. Available as OEM modules or CDRH Laboratory versions. Suitable for use with 098, 1000 and 1100 series HeNe lasersDescription:
The power supply automatically adjusts laser tube voltage to maintain a fixed discharge current. A CDRH time delay is active on all complete power supplies, and may be defeated on power supply modules. All power supplies have complete fault protection and can withstand output short circuits, or arc-to-ground conditions. Power supplies are available for 100, 115, 200, 230 V AC and 12 V DC operation, with efficiencies greater than 85%. Complete laser systems are made by combining a Lumentum 1100 HeNe series laser head with the appropriate 1200 series power supply. Laser systems meet Center for Devices and Radiological Health requirements and display logotypes describing CDRH classification and operating limits.
- Highly regulated, constant current output
- Complete fault protection
- Exceptional DC stability
- Typical conversion efficiency >85%
- Compact, rugged packaging
- Exceptional lifetime
Specifications:
| Name | Input Voltage | Output Voltage | Suitable for |
| 101T-1250 HeNe Laser OEM Power Supply | 12V DC | 1250 V | 1107/1108 laser heads |
| 101T-1700 HeNe Laser OEM Power Supply | 12V DC | 1700 V | 1101/1103 laser heads |
| 101T-1800 HeNe Laser OEM Power Supply | 12V DC | 1800 V | 1122 laser heads |
| 101T-2300 HeNe Laser OEM Power Supply | 12V DC | 2300 V | 1125/1137 laser heads |
| 101T-2300 HeNe Laser OEM Power Supply | 24V DC | 2300 V | 1125/1137 laser heads |
| 314T-1250 HeNe Laser OEM Power Supply | 115/230V AC | 1250 V | 1107/1108 laser heads |
| 314T-1700 HeNe Laser OEM Power Supply | 115/230V AC | 1700 V | 1101/1103 laser heads |
| 314T-1800 HeNe Laser OEM Power Supply | 115/230V AC | 1800 V | 1122 laser heads |
| 314T-2300 HeNe Laser OEM Power Supply | 115/230V AC | 2300 V | 1125/1137 laser heads |
| 314T-2700 HeNe Laser OEM Power Supply | 115/230V AC | 2700 V | Green HeNe laser heads |
| 380T-3100 HeNe Laser OEM Power Supply | 115/230V AC | 3100 V | 1135 laser heads |
| 380T-3500 HeNe Laser OEM Power Supply | 115/230V AC | 3500 V | |
| 380T-3800 HeNe Laser OEM Power Supply | 115/230V AC | 3800 V | 1144/1145 laser heads |
| 1201-1 HeNe Laser Laboratory Power Supply | 115V AC | 1700 V | 1101/1103 laser heads |
| 1201-2 HeNe Laser Laboratory Power Supply | 230V AC | 1700 V | 1101/1103 laser heads |
| 1202-1 HeNe Laser Laboratory Power Supply | 115V AC | 2300 V | 1125/1137 laser heads |
| 1202-2 HeNe Laser Laboratory Power Supply | 230V AC | 2300 V | 1125/1137 laser heads |
| 1205-1 HeNe Laser Laboratory Power Supply | 115V AC | 1250 V | 1107/1108 laser heads |
| 1205-2 HeNe Laser Laboratory Power Supply | 230V AC | 1250 V | 1107/1108 laser heads |
| 1206-1 HeNe Laser Laboratory Power Supply | 115V AC | 1800 V | 1122 laser heads |
| 1206-2 HeNe Laser Laboratory Power Supply | 230V AC | 1800 V | 1122 laser heads |
| 1216-1 HeNe Laser Laboratory Power Supply | 115V AC | 3100 V | 1135 laser heads |
| 1216-2 HeNe Laser Laboratory Power Supply | 230V AC | 3100 V | 1135 laser heads |
| 1218-1 HeNe Laser Laboratory Power Supply | 115V AC | 3800 V | 1144/1145 laser heads |
| 1218-2 HeNe Laser Laboratory Power Supply | 230V AC | 3800 V | 1144/1145 laser heads |
