Standard Cage Plates

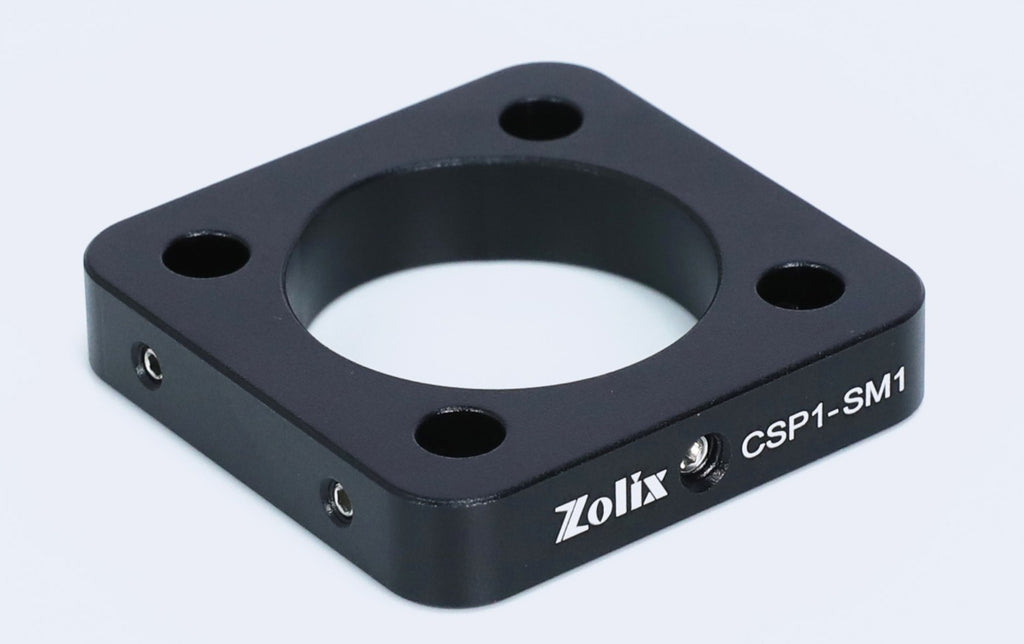

Zolix offers a wide range of standard cage plates, ideal for assembling Ø25.4 mm optics or lens tubes. The plates are 9 mm thick and are available with SM1 threads, RMS threads, or a Ø30.5 mm central through-hole. Each cage plate features four mounting holes compatible with 30 mm cage systems, allowing them to slide freely along the cage rods. An M3 setscrew is positioned on the outside of the central hole and can be tightened using a 1.5 mm hex key to secure components in place.
| Model | Description | Quantity | Price | Order |
|---|---|---|---|---|

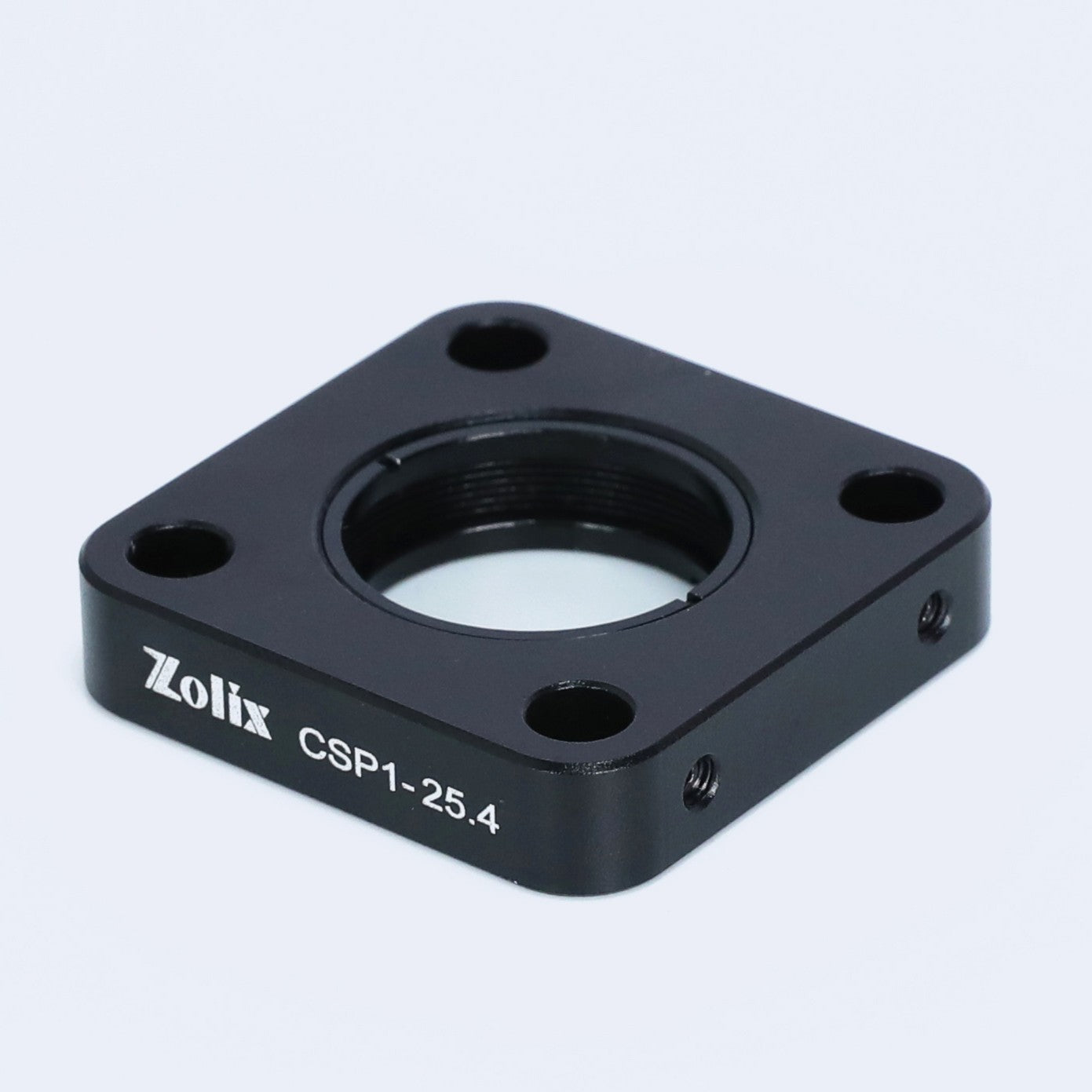

| CSP1-25.4 | Standard Cage Plate. 9mm Thick. Suitable for 25.4mm Optics | 1 | £14.10 | |
| CSP1F | Standard Cage Plate with Flexure Clamping | 1 | £19.82 | |
| CSC1-SM1 | SM1 Threaded Cage Plate End Cap | 1 | £11.31 |
Zolix offers a wide range of standard cage plates, ideal for assembling Ø25.4 mm optics or lens tubes. The plates are 9 mm thick and are available with SM1 threads, RMS threads, or a Ø30.5 mm central through-hole. Each cage plate features four mounting holes compatible with 30 mm cage systems, allowing them to slide freely along the cage rods. An M3 setscrew is positioned on the outside of the central hole and can be tightened using a 1.5 mm hex key to secure components in place.
